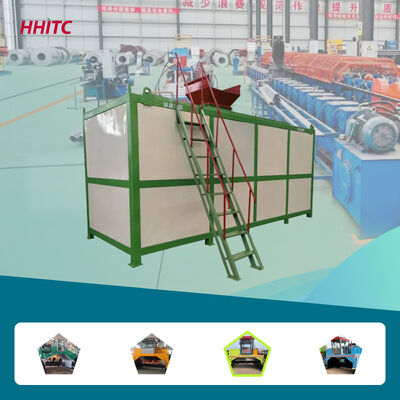

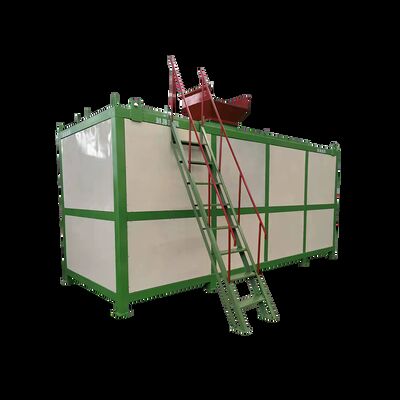

Automatic Aerobic Fermentation Tank with Stainless Steel Lining and PLC Control System for 20m³ Organic Waste Conversion

Name: Automatic Aerobic Fermentation Tank with Stainless Steel Lining and PLC Control System for 20m³ Organic Waste Conversion
Brand: Zhengzhou Huihang Machinery Equipment Co., Ltd.
SKU: FJ2000
Availability: InStock

Brand Name:	HuiHang
Model Number:	FJ2000
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Corrosion-resistant Steel

Capacity:

Capacity

Power:

Energy-efficient Motor

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Stainless Steel Lining Aerobic Fermentation Tank

PLC Control System Compost Fertilizer Machine

20m³ Capacity Organic Waste Fermenter

Product Description

Automatic Aerobic Fermentation Tank for Organic Conversion

Our fermentation tanks are engineered for efficient fermentation, decomposition, and degradation of organic waste including chicken manure, cow manure, sheep manure, pig manure, and agricultural straw. The vertical design accommodates large-capacity materials with standard tank volumes ranging from 30m³ to 120m³.

Key Components

The fermentation system includes: stainless steel fermentation inner tank, stirring device, ventilation system, temperature control unit, feed and discharge ports, hydraulic station, power distribution system, weather protection, deodorization system, and PLC automation controls.

Working Principle & Features

Stainless steel plate lining with rock wool insulation layer for optimal heat retention
PLC control system enables fully automatic operation
Moisture adjustment capability using auxiliary materials like crushed straw, rice straw, and fruit shells
Integrated stirring, ventilation, temperature control, and deodorization systems for stable, efficient fermentation
Initial bacterial addition promotes rapid decomposition during first operation cycle

Applications

Livestock and poultry manure treatment
Agricultural straw recycling
Organic fertilizer production
Organic solid waste harmless treatment

Technical Specifications - Model FJ2000

Parameter	Specification
Size (LWH)	8200 * 2900 * 3500 mm
Volume	20 m³
Effective Capacity	16 m³
Power Specification	380V 50/60Hz; 415V 50/60Hz
Mix Power	30 kW
Heating Power	36 kW
Aerating System	4.5 kW
