Windrow Compost Fertilizer Machine Turner For Livestock Manure Treatment

Windrow Compost Fertilizer Machine Turner For Livestock Manure Treatment

MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Corrosion-resistant Steel

Capacity:

Capacity

Power:

Energy-efficient Motor

Type:

Pressure Steam Sterilization Equipments,Dry Heat Sterilization Equipments,Ultra High Temperature,Gas Sterilization Equipments,Retort For Fruit & Vegetable / Meat / Canned Food / Dairy Food

Voltage:

380V,110V-240V/50Hz-60Hz,three Phases,220v/50hz,adjustable

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Manure Compost Fertilizer Machine

Livestock Manure Compost Fertilizer Machine

Manure windrow composting machine

Product Description

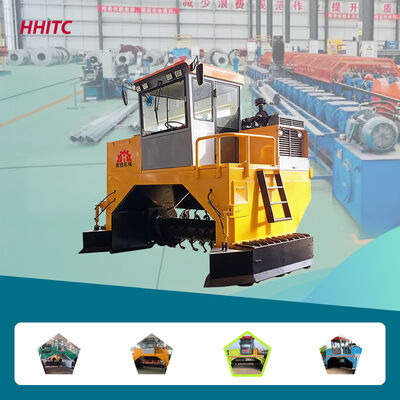

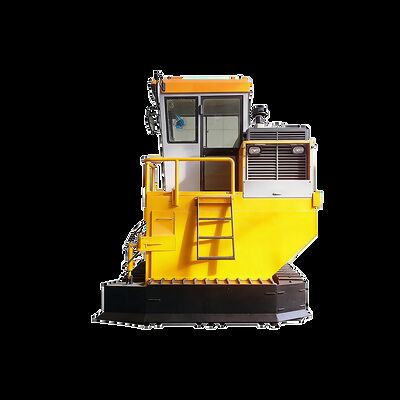

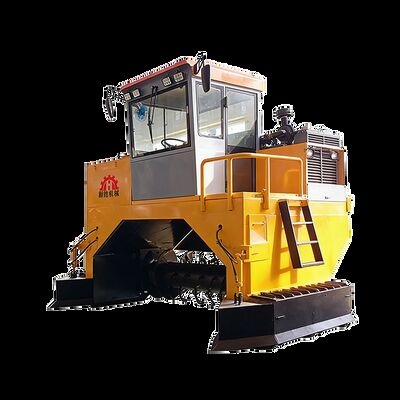

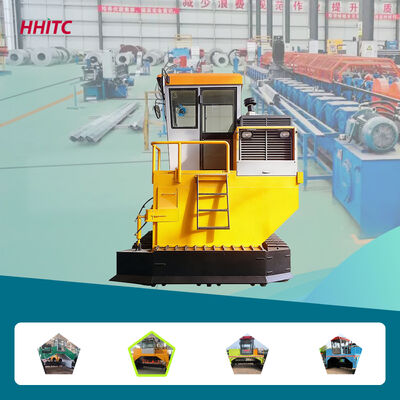

High-Speed Crawler Compost Turner | Variable Speed Aerobic Fermentation Equipment

This crawler type compost turner is a parameter-customized self-propelled fermentation device engineered for medium-to-large scale organic waste disposal scenarios. Built with a heavy-duty crawler chassis, precision hydraulic control system, high-output engine and wear-resistant turning rotor, it is perfectly matched with 3-5m maximum accumulation width and 1.5-1.8m maximum accumulation height, handling materials with particle size up to 250mm effortlessly.

It integrates turning, stirring, aerating, crushing and relocation in a single pass, slashing fermentation cycles significantly, cutting down odor emission and moisture content, and converting livestock manure, straw, sludge and other wastes into premium organic fertilizer. Boasting variable forward/reverse speed of 0-10m/min and 2-3m longitudinal throwing distance, it delivers stable operation, high efficiency and superior terrain adaptability.

Product Advantages

Wide Width & High Capacity Adaptability

Full Hydraulic Drive System

Wear-Resistant & Low-Maintenance Structure

Uniform Aeration & Odor Reduction

Application Scope

Large-Scale Livestock Manure Treatment
Standard Organic Fertilizer Production Line
Ecological Soil Remediation Engineering
Agricultural & Forestry Biomass Utilization

Technical Specifications

Parameter Category	Parameter Name	Specification	Core Advantage Interpretation
Pile Adaptation Index	Max Width of Accumulation	3m / 4m / 5m	Multi-width adaptation, fits small, medium and large-scale strip composting scenarios
	Max Height of Accumulation	1.5m / 1.7m / 1.8m	High-pile operation supported, improves single-batch processing capacity by 30%
	Cross-sectional Area of Accumulation (45° Angle)	1.5-2.5m³	Matches standard compost pile structure, ensures uniform aeration and fermentation
	Min Distance between Accumulations	0.6m	Ultra-narrow spacing design, increases site utilization rate by over 20%
Material Handling Performance	Max Diameter of Accumulation Particles	250mm	No pre-crushing required for large-particle materials, reduces front-end process cost
Material Handling Performance	Working Longitudinal Throwing Distance	2-3m	Long-distance throwing enhances material fluffiness, accelerates moisture evaporation
Operation Efficiency Index	Max Processing Capacity	800~2500m³	Wide capacity range, meets daily processing needs of different-scale projects
Operation Efficiency Index	Forward/Reverse Speed	0-10m/min	Stepless speed regulation, precise control of turning rhythm for different materials
