Automatic NPK Fertilizer Production Line with Adjustable NPK Ratios, High Granulation Rate, and Modular Configuration for Fertilizer Manufacturing

Brand Name:	HHITC
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Materialofconstruction:

High-quality Steel

Supply Ability:

to be determined

Highlight:

Adjustable NPK Ratios NPK Fertilizer Production Line

High Granulation Rate Granular Fertilizer Making Plant

Modular Configuration Compound Fertilizer Production Line

Product Description

Complete NPK Compound Fertilizer Production Line

Production Line Overview

This complete NPK compound fertilizer production line is specially developed for producing granular compound fertilizer with adjustable nitrogen-phosphorus-potassium ratios. It covers the full-process workflow from automatic batching to finished-product packaging.

Finished NPK fertilizer granules feature uniform particle size, high mechanical strength, and good anti-caking performance, making them convenient for storage, transportation, and farm application. This turn-key solution is widely adopted by medium to large fertilizer factories for producing different-formula compound fertilizers.

Key Features

Flexible formula adjustment supporting various NPK proportion formulas for different crop demands
Two optional granulation technologies: wet drum granulation or dry double-roller extrusion granulation
High granulation rate, stable continuous running, low failure rate, and easy maintenance
Modular configuration with customizable whole-line layout according to customer workshop and site conditions
High automation level reducing manual operation with return material recycling system improving raw-material utilization
Finished round granules with high strength, resistant to breakage and anti-caking for long-term storage

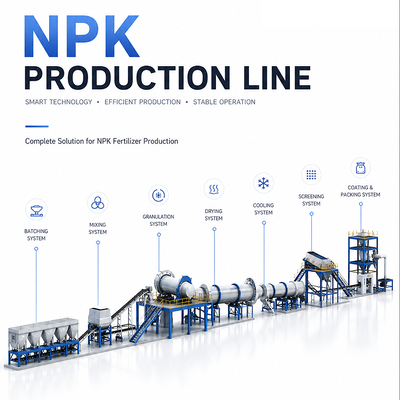

Working Process

Raw material automatic batching
Crushing
Mixing homogenization
Granulation
Drying
Cooling
Rotary screening
Finished-product packaging

Unqualified oversized & fine powder returns back for re-granulation to realize material recycling.

Main Equipment Composition

Automatic Batching System: Accurately weighs nitrogen, phosphorus, potassium and filler raw materials
Material Crusher: Crushes agglomerated chemical raw materials into fine powder
Mixer: Fully blends multiple powder raw materials for even nutrient distribution
Granulator: Converts mixed powder into fertilizer granules (rotary drum / double-roller extrusion optional)
Rotary Dryer & Cooler: Reduces granule moisture and cools down hot fertilizer particles to prevent caking
Rotary Trommel Screen: Separates qualified granules from oversized and undersized return materials
Automatic Quantitative Packaging Machine: Weighs and seals finished NPK fertilizer bags

Application & Specifications

Application Scenarios: Compound fertilizer manufacturing plants, large-scale chemical fertilizer factories, agricultural fertilizer production projects.

Applicable Raw Materials: Urea, ammonium chloride, ammonium sulfate, monoammonium phosphate, diammonium phosphate, potassium chloride, potassium sulfate, bentonite and other NPK chemical filler raw materials.

Technical Specifications

Model	Capacity (t/h)	Total Installed Power (kw)	Suggested Workshop Area (㎡)
5t/h NPK Production Line	5	110	600
10t/h NPK Production Line	10	180	1000
15t/h NPK Production Line	15	260	1300
20t/h NPK Production Line	20	350	1600
