Multi Material Sequential Fertiliser Mixer Machine For Manure 15kW

Multi Material Sequential Fertiliser Mixer Machine For Manure 15kW

Model Number:	PJ2500
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Warranty Period:

1 Year

Voltage:

220V / 380V / 415V

Application:

Mixing Organic And Inorganic Fertilizers

Weight:

500 Kg To 3000 Kg

Mixingmethod:

Horizontal / Vertical / Paddle

Mixing Speed:

35 R/min

Production Capacity:

2-15t/h

Motorpower:

5 KW To 30 KW

Raw Material:

Animal Manure

Power:

7.5-22 KW

Mixingtime:

5 To 15 Minutes

Advantage:

High Productivity

Material:

Stainless Steel / Carbon Steel

Type:

Agricultural Equipment

Keyword:

Fertilizer Mixer Machine

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Sequential fertiliser mixer

15kW fertiliser mixer

15kW manure mixing machine

Product Description

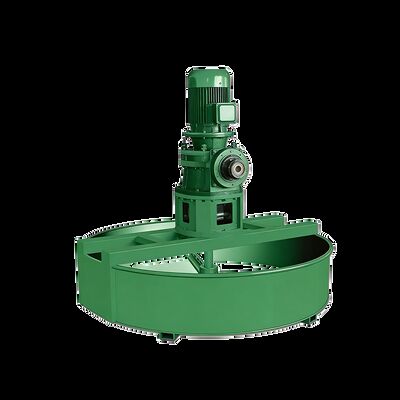

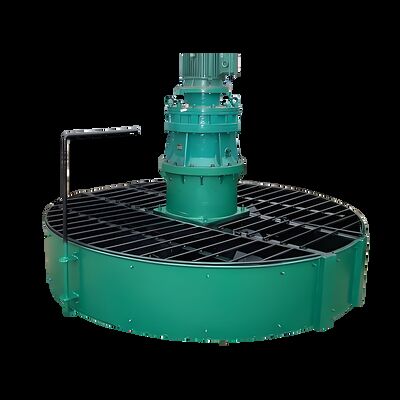

Disk Mixer – Efficient Blending Solution for Multi-Material Sequential Mixing

The Energy-Saving Dual-Chamber Disk Mixer is a specialized industrial blending equipment designed for sequential mixing of multiple materials and formula optimization, with a focus on low energy consumption and high blending efficiency. It features a unique dual-circular disk structure with independent mixing chambers and shared drive components, which allows simultaneous or sequential processing of two different material batches, greatly improving production flexibility.

Each mixing chamber is equipped with an optimized curved blade design that reduces material resistance during mixing, cutting down energy consumption by 20% compared to traditional single-chamber disk mixers. The machine adopts a frequency conversion speed regulation system, enabling stepless adjustment of mixing speed to adapt to different material properties and blending requirements.

Its integrated feeding and discharging linkage device realizes seamless connection between the two chambers, supporting continuous production without manual transfer. With a compact structure and low noise operation, this mixer is an ideal choice for enterprises pursuing energy conservation, production efficiency improvement, and multi-variety small-batch production.

Application Scope

Specialized in multi-material sequential mixing and energy-saving production

Building Materials Industry: Sequential mixing of dry-mixed mortar base materials and functional additives, and separate mixing of different grades of tile adhesives
Fertilizer Industry: Batch mixing of compound fertilizer basic components and trace element additives, and mixing of different formula organic fertilizers
Chemical Industry: Sequential blending of resin base materials and curing agents, and separate mixing of different color pigment masterbatches
Feed Industry: Mixing of basic feed ingredients and additive premixes, and production of customized feed for different animal growth stages

Product Highlights

Flexible Sequential Mixing: Integrated feeding-discharging linkage realizes seamless connection between pre-mixing and final mixing, meeting the requirements of multi-component formula sequential blending.
Low-Noise Stable Operation: Precision dynamic balancing design of mixing arms minimizes vibration and operational noise, creating a quiet workshop environment.
Easy Maintenance & Cleaning: Detachable chamber liners and blades facilitate quick cleaning and replacement; shared drive components reduce the number of wearing parts and maintenance costs.
Wide Material Adaptability: Stepless speed regulation adapts to mixing of various materials, from light powders to heavy granules, with strong versatility.

Technical Specifications

Model	PJ2500
Mixer Diameter	2500 mm
Mixer Wall Height	500 mm
Rotation Speed	9 r/min
Power	15 kW
Production Capacity	10-16 t/h
Overall Dimension	2600×2516×1653 mm
Weight	2050 kg
