Disk Granular Fertilizer Mixer Machine Large Scale Continuous Production

Disk Granular Fertilizer Mixer Machine Large Scale Continuous Production

Model Number:	PJ1800
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Mixing Organic And Inorganic Fertilizers

Dimensions:

Varies By Model, E.g., 3000x1500x2000 Mm

Capacity:

1 Ton To 20 Tons

Production Capacity:

2-15t/h

Function:

Mixing

Warranty Period:

1 Year

Material:

Stainless Steel / Carbon Steel

Weight:

500 Kg To 3000 Kg

Type:

Agricultural Equipment

Power:

11kw

Motorpower:

5 KW To 30 KW

Raw Material:

Animal Manure

Keyword:

Fertilizer Mixer Machine

Machine Type:

Fertilizer Blender Mixer Machine

Mixingtime:

5 To 15 Minutes

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Disk granular fertilizer mixer

Large Scale granular fertilizer mixer

Disk fertilizer mixing machine

Product Description

Disk Mixer – Rapid Blending Solution for Large-Scale Continuous Production

Product Overview

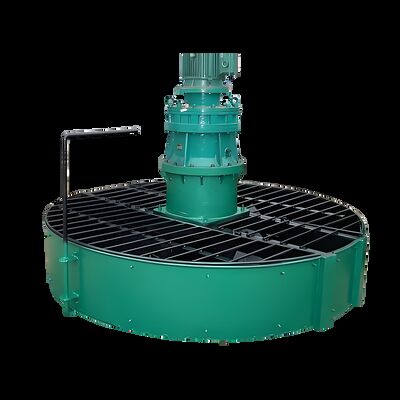

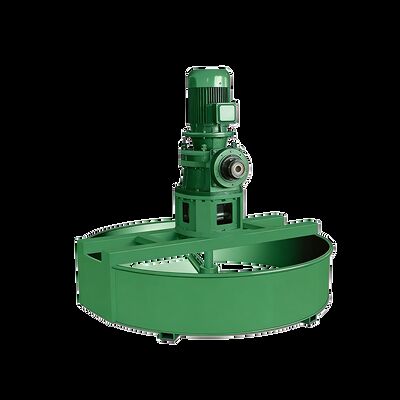

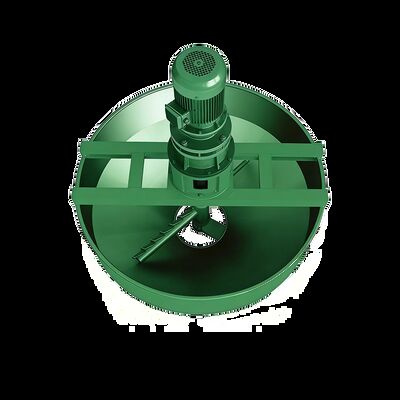

The Ultra-High Efficiency Disk Mixer is a heavy-duty industrial blending equipment engineered for high-throughput, rapid mixing of bulk dry powders, granules, and powder-granule composites in large-scale production lines. It features a large-diameter, deepened mixing disk with a spiral-angled bottom design, paired with a multi-layered staggered mixing blade system. During operation, the high-power variable-frequency drive system drives the blades to rotate at an optimized speed, creating a strong three-dimensional material flow that pushes materials to move radially, circumferentially, and vertically simultaneously. This design achieves homogeneous blending in 50% less time compared to conventional disk mixers, eliminating material stratification and dead zones. The machine is equipped with a pneumatic quick-opening discharge valve and a dedicated feeding hopper with a flow accelerator, realizing seamless connection between feeding, mixing, and discharging processes with minimal downtime. With its robust structure and high-efficiency performance, it is the core equipment for enterprises pursuing maximum productivity and production line optimization.

Application Scope

Specialized in rapid large-batch mixing for high-throughput production, it is widely applied in:

Building Materials Industry: High-speed mixing of dry-mixed mortar, tile adhesive, and thermal insulation material premixes for mass production
Fertilizer Manufacturing Industry: Rapid blending of compound fertilizer granules, organic fertilizer powders, and bulk nutrient additives
Mining & Metallurgy Industry: Efficient mixing of mineral powders, ore concentrates, and flux materials for continuous smelting processes
Chemical Industry: High-volume mixing of industrial salt powders, pigment particles, and filler materials for chemical production lines
Feed Processing Industry: Fast blending of grain powders, protein meal, and mineral supplements for large-scale compound feed production

Product Highlights

Large-Capacity Batch Handling: Deepened large-diameter mixing disk accommodates extra-large batches of materials, meeting the output demands of large-scale production lines.
Seamless Process Connection: Pneumatic quick-opening discharge valve + flow-accelerated feeding hopper minimize transfer time between processes, supporting continuous production.
Uniformity Without Dead Zones: Staggered blade layout eliminates material accumulation in dead zones, ensuring consistent blending uniformity across the entire batch.
Energy-Saving High-Power Drive: Variable-frequency drive system matches power to load, avoiding energy waste during idle or low-load stages while maintaining high mixing efficiency.
Durable & Low-Downtime Design: Wear-resistant alloy blades and reinforced drive components ensure long-term stable operation, reducing maintenance downtime for large-scale production.

Technical Specifications

Model	PJ1800
Mixer Diameter	1800 mm
Mixer Wall Height	400 mm
Rotation Speed	10.5 r/min
Power	7.5 kW
Production Capacity	4-6 t/h
Overall Dimension	190018121368 mm
Weight	1400 kg
