Long-Life Chain-Plate Turner with 65Mn Steel Chain Plates, Sealed Oil-Immersed Drive, and Reinforced Anti-Deformation Frame for Harsh Conditions

Long-Life Chain-Plate Turner with 65Mn Steel Chain Plates, Sealed Oil-Immersed Drive, and Reinforced Anti-Deformation Frame for Harsh Conditions

Model Number:	LB Series
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Corrosion-resistant Steel

Capacity:

Capacity

Power:

Energy-efficient Motor

Type:

Pressure Steam Sterilization Equipments,Dry Heat Sterilization Equipments,Ultra High Temperature,Gas Sterilization Equipments,Retort For Fruit & Vegetable / Meat / Canned Food / Dairy Food

Advantage:

High Efficiency,Eco-friendly,Non Thermal

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

65Mn Steel Chain Plates Chain-Plate Turner

Sealed Oil-Immersed Drive Compost Turner

Reinforced Anti-Deformation Frame Organic Waste Turner

Product Description

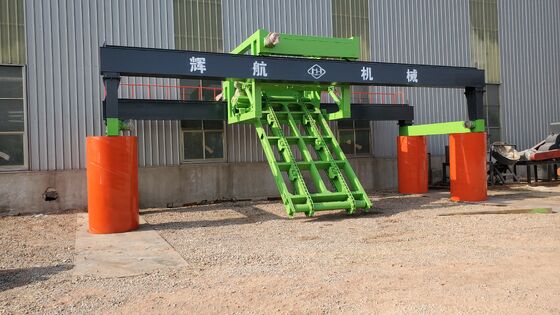

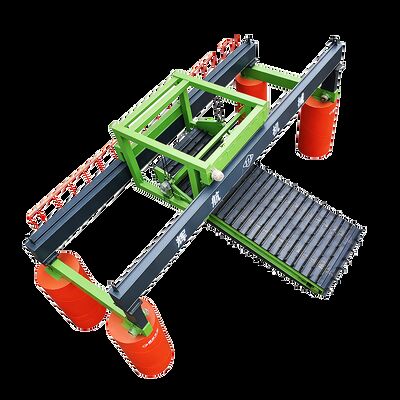

Long-Life Chain-Plate Turner | Rugged for Harsh Conditions

Product Description

This chain-plate turner is engineered for ultra-durability and optimized for high-intensity composting operations. Featuring 65Mn steel chain plates with double quenching and wear-resistant coating, it delivers an exceptional service life of 8-10 years. The sealed oil-immersed drive system effectively blocks dust and corrosion, eliminating common operational faults. The reinforced frame construction withstands heavy loads without deformation. With significantly fewer wearing parts and 12-month maintenance intervals, this machine operates continuously 24/7, dramatically reducing downtime and operational costs. Ideal for fertilizer production facilities, intensive breeding operations, and waste treatment centers.

Application Scope

Large Fertilizer Factories

Continuous operation with minimal replacement frequency

Intensive Breeding Bases

Heavy-load manure treatment suitable for muddy environments

Industrial Waste Sites

Robust handling of hard materials with superior wear resistance

Municipal Waste Projects

Reliable performance in municipal waste management applications

Product Highlights

Triple-hardened 65Mn chain plates: 3* longer service life with exceptional wear and impact resistance
Fully-sealed oil-immersed drive: Zero jamming and rusting issues, eliminating frequent maintenance requirements
60% fewer wearing parts: Simplified structural design significantly reduces replacement costs
Reinforced anti-deformation frame: Maintains stability under heavy loads without cracking or structural failure

Technical Specifications

Parameter Type	Specific Indicators	Value Range/Details
Basic Information	Model	LB Series
Basic Information	Machine Weight	8 - 16.5 t
Power & Drive	Power	20.95 - 30.95 kW
Power & Drive	Operating Speed	900 m/h
Power & Drive	No-load Speed	3660 m/h
Working Dimensions	Chain Plate Width	2 - 4 m
Working Dimensions	Material Bed Height	1.5 - 2 m
Performance Metrics	Treatment Capacity	4800 - 6400 m³/h
Performance Metrics	Single Turning Displacement	4 m
Tank Compatibility	Compatible Fermentation Tank Width	4.4 - 10.4 m
Tank Compatibility	Compatible Tank Height	2 m
