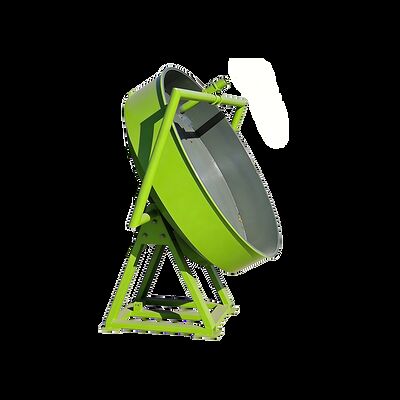

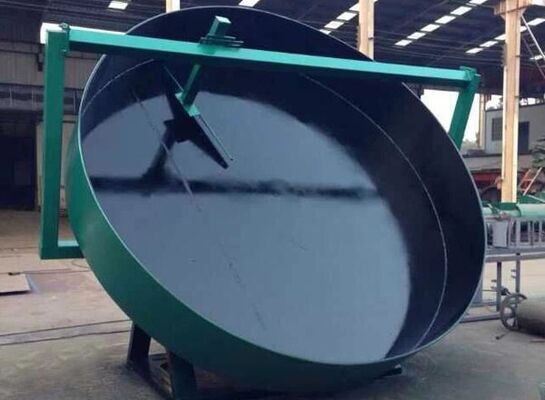

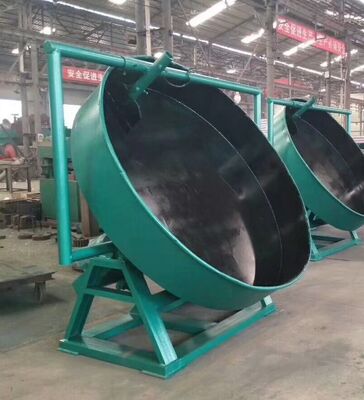

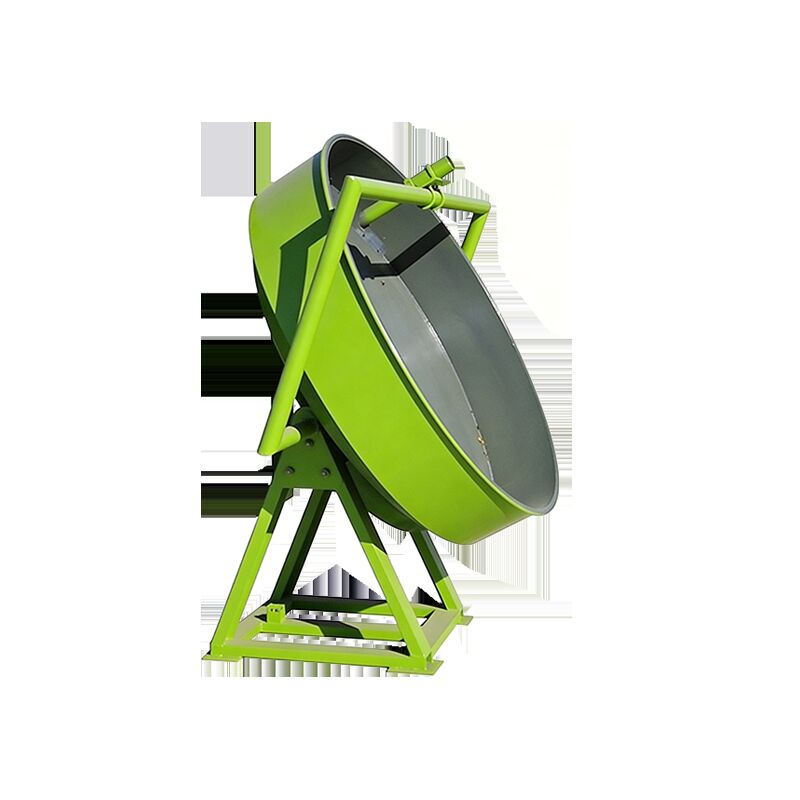

Customizable Pan Disc Fertilizer Granulator Machine Energy Saving

Customizable Pan Disc Fertilizer Granulator Machine Energy Saving

Model Number:	YP2200
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Wear-resistant Alloy Steel

Capacity:

High Granule Output

Power:

Stable Motor Performance

Machine Type:

Granulator,Organic Fertilizer Granulator,fertilizer Machine

Voltage:

380V,220V/380V,380V/50HZ,all Countries Are Ok,220V

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Customizable Fertilizer Granulator Machine

Pan Disc Fertilizer Granulator Machine

Fertilizer pan granulator

Product Description

Disc Type Granulator – Customizable Granulation Solution

The Disc Type Granulator is a cutting-edge, energy-saving granulation device engineered to convert powdery, lumpy, or semi-moist raw materials into high-strength, uniform spherical granules. Leveraging the triple forces of centrifugal force, gravity, and friction, it outperforms traditional granulators in both granule quality and production efficiency.

Available in modular models with disc diameters from 1m to 7.5m and processing capacity of 4-24t/h, this equipment is tailored for both small-batch customization and large-scale industrial production, serving as core equipment in green manufacturing chains.

Application Scope

Eco-Fertilizer Production: Granulation of organic manure, fermented straw, and bio-fertilizer raw materials, preserving nutrient activity and improving fertilizer application efficiency
Waste Resource Utilization: Turning municipal sludge, industrial slag, and phosphogypsum into reusable granular materials for circular economy projects
High-End Industrial Fields: Manufacturing precision granules for pharmaceutical excipients, food additives, and ceramic powders meeting strict purity standards
Traditional Industrial Sectors: Pelletizing iron ore concentrate, cement clinker, and fly ash for metallurgical and building materials production

Product Highlights

Superior Granule Quality with Zero Material Waste

Adopting a fluid dynamics-optimized arc-shaped disc, it achieves a 95% maximum granule forming rate, with 92% of finished granules falling within the 3-6mm target range. The granules feature high compressive strength, smooth surface, and uniform density, avoiding breakage during storage and transportation. The unique self-classifying design reduces oversized/undersized particles, minimizing material waste by 10% compared to conventional models.

Flexible Customization for Multi-Scenario Production

The disc tilt angle (30°-55°) and rotation speed (1-25rpm) support stepless adjustment, allowing quick switching between different product specifications without equipment modification. It is compatible with materials of 10-30% moisture content, eliminating the need for pre-drying or post-processing steps for most raw materials.

Energy-Saving & Low-Maintenance Design

Equipped with a frequency conversion direct-drive system, it cuts energy consumption by 20% versus belt-driven granulators. The disc is lined with wear-resistant, corrosion-proof FRP material, extending service life by 35%. The integrated self-cleaning scraper prevents material adhesion, reducing manual maintenance time by 50% and lowering operational costs.

Technical Specifications

Model	Pan Diameter (mm)	Rim Height (mm)	Volume (m³)	Rotation Speed (r/min)	Motor Power (kw)	Production Capacity (t/h)
YP2200	2200	600	2.2	13.6	6.5	1.5-2.0
