NPK Double Roller Fertilizer Granulator Machine For Feed Industry 15kw

NPK Double Roller Fertilizer Granulator Machine For Feed Industry 15kw

Model Number:	DZJ-I-1.0
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Machine Type:

Granulator,Organic Fertilizer Granulator,fertilizer Machine

Voltage:

380V,220V/380V,380V/50HZ,all Countries Are Ok,220V

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support

Dimension(l*w*h):

Customized,3300*1800*1300MM,1.85*1.4*3M,4500*600*800(mm),Non-standard

Type:

Granulate Making Equipments,Chicken Manure Organic Fertilizer Machine,Granulator Dryer,machine For Making Organic Fertilizer,fertilizer Granulator

Material:

State Standard Carbon Steel,Stainless Steel,sus304/316

Packaging Details:

with wooden boxes in container

Supply Ability:

to be determined

Highlight:

Feed Fertilizer Granulator Machine

15kw Fertilizer Granulator Machine

NPK double roller granulator

Product Description

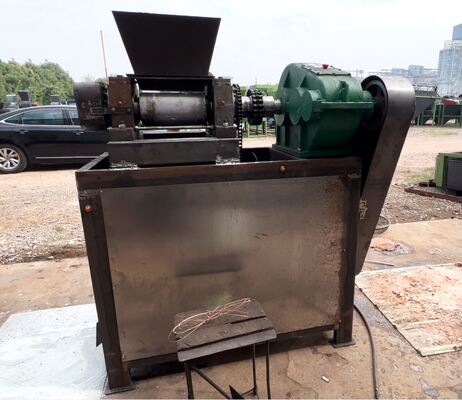

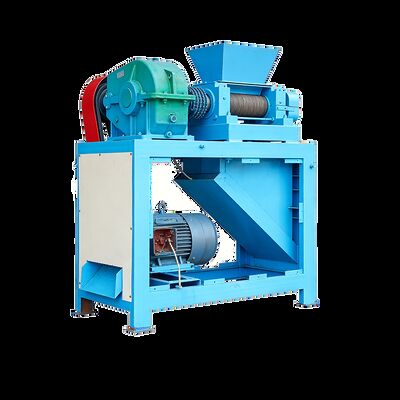

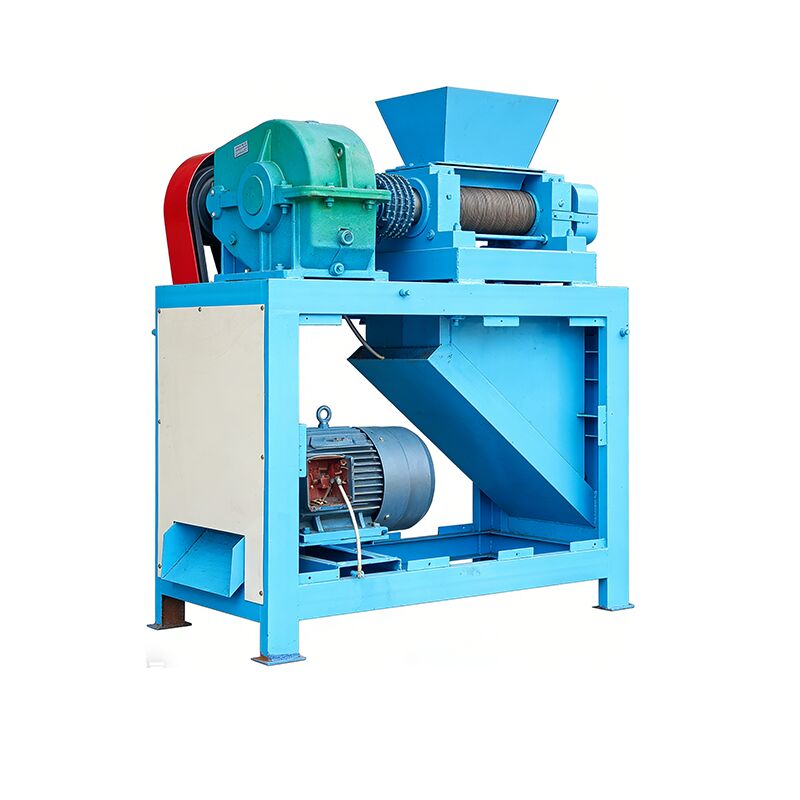

Double Roller Extrusion Granulator – Low-Power Dry Granulation for Eco-Cost Production

Product Overview

The Super Energy-Saving Double Roller Extrusion Granulator is a high-efficiency dry granulation device optimized for minimal energy consumption. It transforms powdery raw materials into dense, high-strength pellets through precision high-pressure extrusion (0.4-19MPa), requiring no water, chemical binders, or drying systems. Equipped with a high-efficiency permanent magnet motor and friction-reducing transmission structure, it reduces energy consumption by 50% compared to traditional granulators while maintaining a granulation rate exceeding 93%. With flexible output capacity of 0.2-18t/h, this system is ideal for small and medium-sized enterprises seeking to reduce operational costs and carbon footprints.

Application Scope

Perfect for ultra-low energy consumption granulation scenarios, this equipment is widely used in:

Fertilizer Industry: Organic fertilizer, NPK compound fertilizer granulation
Chemical Industry: Inorganic salt, catalyst powder processing
Feed Industry: Feed additive, vitamin premix granulation
Building Materials Industry: Fly ash, refractory powder granulation

Key Features

50% Energy Reduction: High-efficiency permanent magnet motor and friction-reducing transmission significantly lower power consumption
Binder-Free Dry Process: Eliminates water addition and drying steps, preventing nutrient loss
Compact Design: Space-saving footprint suitable for limited workshop areas
Uniform Pellet Quality: Adjustable extrusion pressure ensures consistent particle size (0.8-10mm) and high compressive strength
Eco-Friendly Operation: Fully enclosed structure prevents dust leakage with zero wastewater discharge

Technical Specifications

Parameter	DZJ-I-1.0
Equipment Model	DZJ-I-1.0
Processing Capacity (t/h)	1~1.5
Rated Power (kw)	15kw
Pressure Roller Dimension	Φ150×220
Maximum Feed Particle Size (mm)	≤0.5mm
Finished Granule Diameter (mm)	Φ2.5~Φ10
Reducer Type / Hardened Gear System	ZQH350/ZLY160
Recommended Material Moisture Content	2%~5%
