High Granulation Rate Disc Granulator with Integral Arc Design and Non-power Scraper for Fertilizer Pellet Making

High Granulation Rate Disc Granulator with Integral Arc Design and Non-power Scraper for Fertilizer Pellet Making

Brand Name:	HHITC
Model Number:	YZL Series
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Nutrient Content:

High

Color:

Any Color

Tire:

Heavy‑duty Solid Rubber Tires

Automation Level:

Semi-automatic Or Fully Automatic

Power Source:

Electric Motor

Control System:

Automatic,Automatic Control System,CNC

Supply Ability:

to be determined

Highlight:

High Granulation Rate Disc Granulator

Integral Arc Design Fertilizer Granulator Machine

Non-power Scraper Pellet Making Machine

Product Description

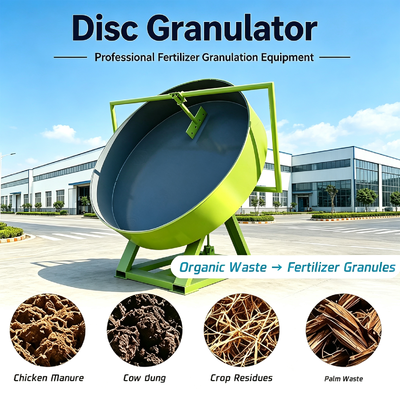

High Granulation Rate Disc Granulator for Organic Fertilizer Pellet Making

The disc granulator adopts an integral arc design with a granulation rate exceeding 93%. Ideal for intermittent production, it significantly reduces labor intensity while improving working efficiency. This equipment is widely used for pelletizing powdery, flaky, or small block materials including coal powder, cement, clinker, compound fertilizer, chemical fertilizer, and organic fertilizer.

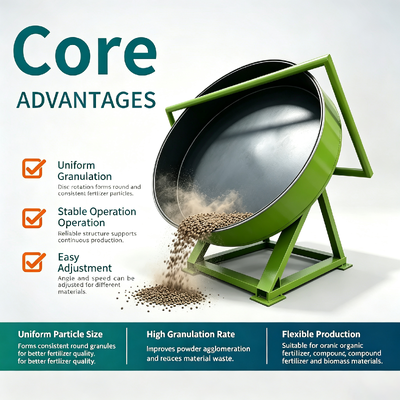

Key Features

Integral arc design achieving over 93% granulation rate
Non-power scraper effectively prevents material adhesion on disc wall
Sturdy base structure ensures stable operation with minimal vibration
Suitable for intermittent production with easy operation and low labor costs
Wide raw material adaptability for organic and compound fertilizer production
Multiple models available to match different production capacity requirements

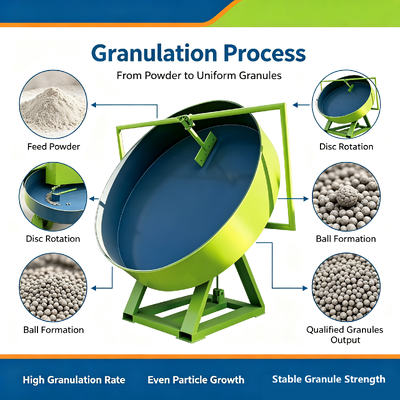

Working Process

Powder raw materials are fed into the rotating disc. By adding proper amounts of water or binder, materials roll and agglomerate inside the inclined disc to gradually form round pellets. The non-power scraper continuously cleans the disc surface to prevent material sticking. Qualified pellets roll out from the disc edge, enabling continuous granulation operation.

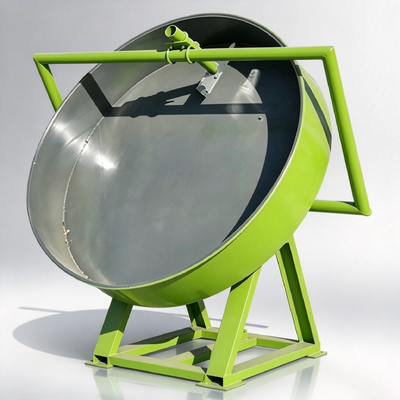

Product Components

Non-power Scraper: Automatically removes adhered materials to keep disc clean
Granulation Disc: Integral arc structure ensures high pellet forming efficiency
Sturdy Base: Heavy-duty frame supports stable long-term operation

Applications

Organic fertilizer production line
Compound & chemical fertilizer plant
Coal powder pelletizing project
Cement and clinker granulation processing

Technical Specifications

Item	YZL-25	YZL-28	YZL-30	YZL-32	YZL-45
Disc Diameter (mm)	2500	2800	3000	3200	4500
Disc Volume (m³)	2.5	3.7	4.2	4.8	6.1
Power (kw)	7.5	11	11	11	37
Output (t/h)	1-1.5	1-2.5	2-3	2-3.5	10

Compatible Raw Materials

Cow manure, chicken manure, mushroom substrate organic fertilizer
Compound fertilizer, chemical fertilizer
Coal powder, cement, clinker and other powdery materials
