Large Capacity Continuous Processing Rotary Drum Granulator with High Granulation Rate for Fertilizer Production

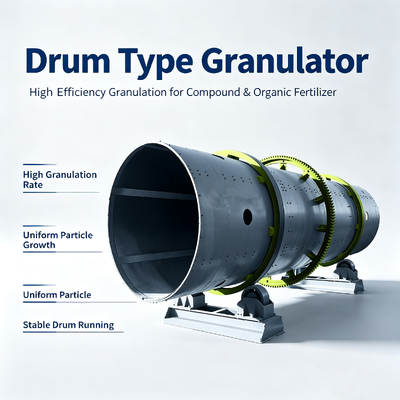

The ZG-series rotary drum granulator is a mainstream wet granulation equipment that converts powdery raw materials into solid spherical granules. This robust system consists of a rotating drum, supporting device, transmission unit, lubrication assembly, feeding & discharging device, and airflow system.

Designed for continuous 24-hour mass production, this machine is widely applied in organic fertilizer, compound fertilizer, metallurgy, building materials, and chemical industries. The rubber lining inside prevents material sticking, reduces downtime for cleaning, and extends service life. Available models include ZG2400 and ZG2400PLUS to accommodate different motor configuration requirements.

• Large continuous processing capacity with output reaching 20-25 tons per hour, ideal for large-scale fertilizer production lines
• Inner rubber lining effectively prevents material adhesion, eliminating frequent manual cleaning requirements
• Stable gear transmission system ensures low running noise and extended service life
• Supports wet granulation with water, steam, or binder liquid for high-strength spherical pellets
• Two optional configurations of high-quality motors available for customer selection
• Simple structure design enables convenient maintenance and low failure rate

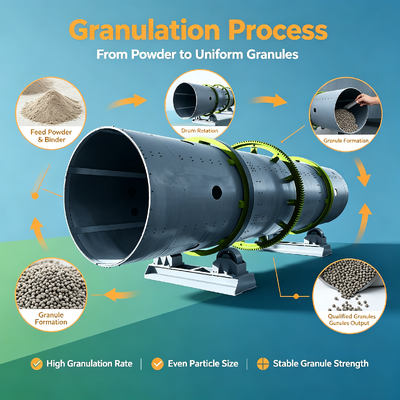

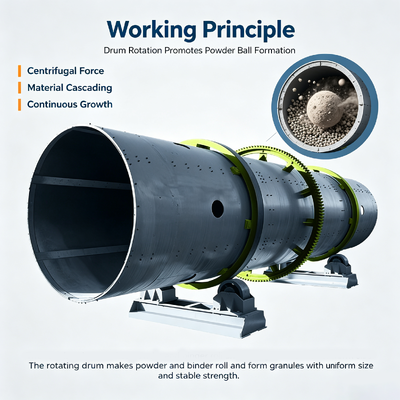

Pre-mixed powder raw materials are continuously fed into the inclined rotary drum. As the cylinder rotates at constant speed, water or steam is sprayed inside as a binder. Powders collide, tumble, and agglomerate into granules under gravity and centrifugal force. Gradually grown spherical pellets flow out from the discharge end, then proceed to subsequent drying, cooling, and screening procedures.

• Rotating Drum: Q235 thick steel cylinder with rubber anti-stick lining, durable and anti-adhesion
• Supporting Device: Heavy-load roller support guarantees stable low-speed rotation
• Transmission Assembly: Large gear ring and reducer drive for stable power output
• Feeding & Discharging Unit: Enables continuous material input and output for non-stop production
• Electric Control Cabinet: Complete supporting electric cabinet for centralized operation control

Application Scenarios:

• Organic fertilizer manufacturing plants
• NPK compound fertilizer production lines
• Metallurgical and building materials granulation workshops
• Chemical powder processing projects

Applicable Raw Materials:

• Fermented organic manure powder
• Compound fertilizer, NPK raw powder
• Metallurgical mineral powder, building-material powder
• Other powder materials suitable for wet granulation
