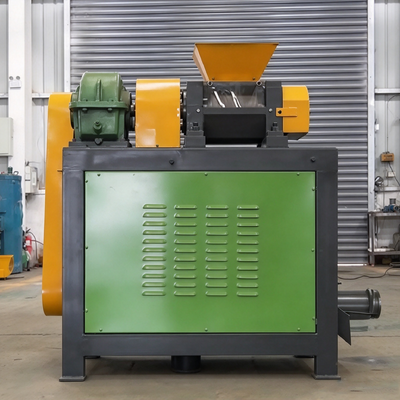

Dry Granulation System Roller Press Pelletizer with Dry Granulation Process High Balling Rate and One-Step Forming

Dry Granulation System Roller Press Pelletizer with Dry Granulation Process High Balling Rate and One-Step Forming

Brand Name:	HHITC
Model Number:	DGZ Series
MOQ:	1
Price:	Negotiable
Supply Ability:	to be determined

Detail Information

Product Description

Detail Information

Place of Origin:

China

Materialofconstruction:

High-quality Steel

Material:

High-quality Steel

Operatingtemperaturerange:

20-70°C

Materials:

SUS304/316

Color:

As Shown In The Picture,

Raw Material:

Animal Manure

Control System:

Automatic,Automatic Control System,CNC

Installed Power:

39 Kw

Core Components:

PLC, Bearing, Gear

Supply Ability:

to be determined

Highlight:

Dry granulation process Roller Press Pelletizer

High balling rate Dry Granulation System

One-step forming Double Roller Extrusion Granulator

Product Description

Dry Granulation System Roller Press Pelletizer for Compound Fertilizer

Dry Roll Compactor Double Roller Extrusion Granulator for Powder Fertilizer Pellet Making

Introduction

The double roller extrusion granulator adopts a dry granulation process. It can complete normal-temperature granulation of dry powder materials and form pellets in one pass. It features high balling rate and strong pellet hardness. With low investment and quick return, this machine is widely used for granulation in fertilizer, feed and chemical industries.

Key Features

Dry granulation at room temperature, no drying procedure required, save energy cost
One-step forming, pelletizing rate ≥85%, finished pellets with good compressive strength
Wide material adaptability, suitable for various dry powder raw materials
Equipped with heavy-duty hard-tooth surface reducer for stable transmission
Compact structure, small footprint, easy operation and maintenance
Factory direct supply, on-site raw material test available, customized technical solution

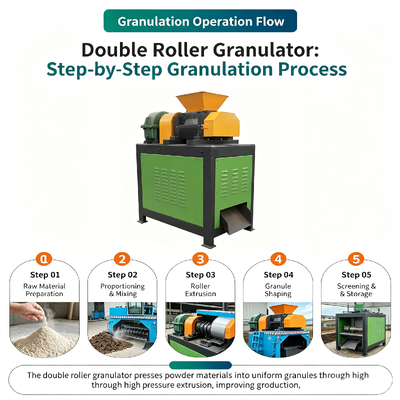

Working Process

Production Flow:

Dry powder raw materials with proper moisture (2%-5%) are fed into the machine from the feeding inlet. Two counter-rotating rollers squeeze the powder under pressure, compressing powder into oblate pellets. Finished pellets are discharged from the outlet directly. No heating or drying needed during the whole production.

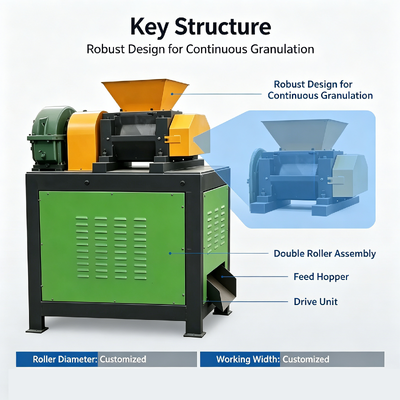

Product Details

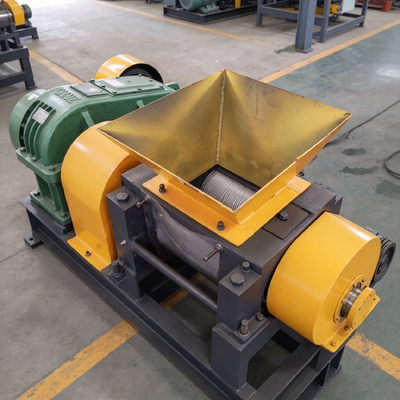

Feeding Inlet: Feed dry powder raw materials evenly into the extrusion chamber
Discharge Outlet: Discharge finished oblate pellets smoothly
Hard-tooth Surface Reducer: Heavy load, stable running, long service life
Extrusion Rollers: Wear-resistant roller mould, adjustable pellet size from 4-10mm
Whole Machine Frame: Welded solid frame, low vibration during operation

Applications & Raw Materials

Application Scenarios

Organic & compound fertilizer production plant
Chemical powder granulation workshop
Feed processing factory
Snow melting agent and mineral powder production line

Applicable Raw Materials

Ammonium sulfate, graphite powder, bentonite, livestock manure, humic acid, silica powder, carbon raiser, snow melting agent, white carbon black, detergent, catalyst, talcum powder, monoammonium phosphate, diammonium phosphate, pesticide and other dry powder materials.

Technical Specifications

Item	DGZ-1	DGZ-1.5	DGZ-2
Capacity (t/h)	1-1.5	1.5-2	2-2.5
Granulation Rate	≥85%	≥85%	≥85%
Power (kw)	15	18.5	22
Material Moisture	2%-5%	2%-5%	2%-5%
Granulation Temp.	Normal Temperature	Normal Temperature	Normal Temperature
Pellet Diameter(mm)	4-10	4-10	4-10
Pellet Compressive Strength	6-20N	6-20N	6-20N
Pellet Shape	Oblate	Oblate	Oblate
