GT-3500 Rotary Drum Micro Filter Solid Liquid Separator With Double Screw Extrusion for Pig Manure Treatment

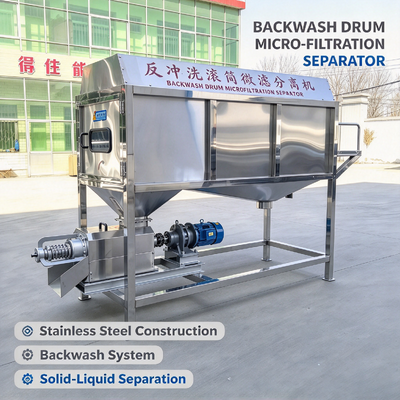

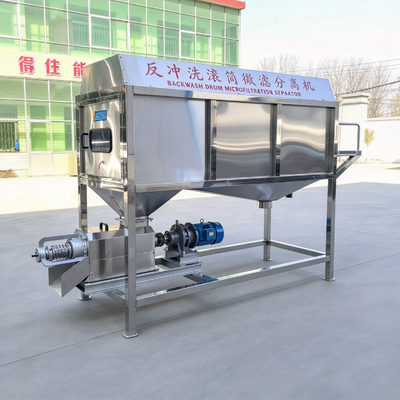

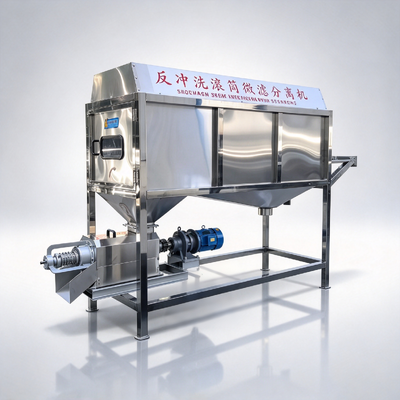

Introduction of GT-3500 Rotary Drum Micro Filter Separator

GT-3500 rotary drum micro filter separator adopts upgraded double screw extrusion design, integrating rotary drum microfiltration and dual-screw dewatering. All material contact parts are 304 stainless steel for corrosion resistance and long service life.

Wastewater enters through dual-direction feeding inlet. The integrated drum screen intercepts solid manure and pig hair. Dual coaxial screw blades convey solids to extrusion zone for deeper dewatering. Optional top spray pump provides automatic backwashing to keep the screen clean.

Solid materials are discharged via spring anti-spray outlet, while filtered liquid flows out for subsequent treatment. Widely applied in large-scale pig farms and biogas plants for manure harmless treatment and resource recycling.

Feature

• 304 stainless steel wetted parts: All parts touching raw materials adopt 304 stainless steel. Drum diameter 700mm, screen length 1952mm, filtration area 5.24㎡, built-in coaxial screw blades.
• Upgraded double screw extrusion system: 2 sets of wear-resistant 304 extrusion screws. Screw diameter 180mm, pitch 150mm, 8mm thick plate. Higher load capacity compared with single screw model.
• High separation performance: Solid interception rate＞90%, solid moisture after dewatering 45‑60%, effluent solid content＜2%.
• Optional automatic backwashing system: 750W spray pump mounted on top to continuously flush screen and avoid clogging.
• Complete safety control cabinet: 304 stainless steel electrical box with thermal, overload and phase-loss protection, frequency conversion flow adjustment.
• Spring anti-spray discharge port: Effectively prevent material splashing under low concentration condition. Φ76mm tee feeding pipe supports dual-direction feeding.
• Stable driving system: 2 sets of 4KW extrusion motors, 2.2KW drum motor. Cycloidal pin gear reducers for extrusion, RV90-63 reducer for drum.

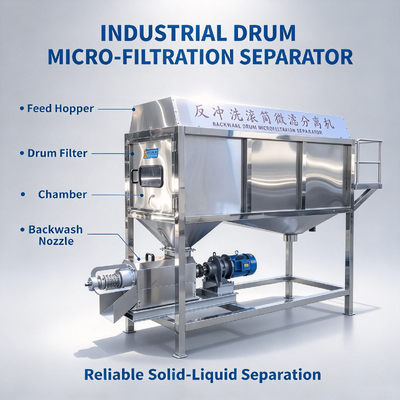

Main Component Details

• Drum Screen: One-piece forming 304 stainless steel, Φ700mm, length 1952mm, filtration area 5.24㎡, built-in coaxial screw blade.
• Extrusion Screw: 2 sets of 304 wear-resistant stainless steel screws, thickness 8mm, diameter 180mm, pitch 150mm.
• Extrusion Screen: 304 stainless steel, inner diameter 180mm, length 600mm, slot gap 0.8mm, reinforced by 4 stainless steel ribs.
• Control Cabinet: 304SS housing, thermal, overload & phase-loss protection, frequency conversion regulation.
• Discharge Port: Spring anti-spray structure with stainless steel hopper.
• Feeding Inlet: Φ76mm, tee galvanized pipe for dual-direction feeding.
• Backwash Device(Optional): 750W spray pump installed on machine top.
• Motor & Reducer: 2×4KW extrusion host motor, 2.2KW drum motor. Cycloidal pinwheel reducers for extrusion, RV90-63 reducer for drum.
• Supporting Accessories: 3KW submersible cutting pump (head 15m, flow 40m³/h, caliber 76mm), 12m steel wire feeding hose.

Application & Applicable Raw Materials

Application Scenarios

Large-scale pig farms, livestock breeding plants, biogas plants, farm wastewater treatment projects, organic fertilizer raw material pretreatment stations.

Applicable Raw Materials

Pig manure, livestock manure, biogas slurry, farm organic wastewater.
