15‑30m³/h High Frequency Vibrating Incline Solid‑Liquid Separation Machine For Secondary Fine Filtration of Livestock Manure

High-frequency vibration inclined-plate solid-liquid separator with capacity 15-30m³/h and SS removal rate ≥80%. Features anti-clogging high-frequency vibrating screen and secondary 304 stainless-steel screw extruder for deep dewatering. Equipped with 100-150 mesh reinforced polyester screen and stainless-steel control cabinet with remote control capability. Total power: 13KW.

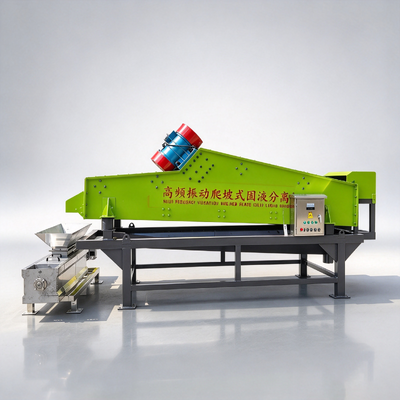

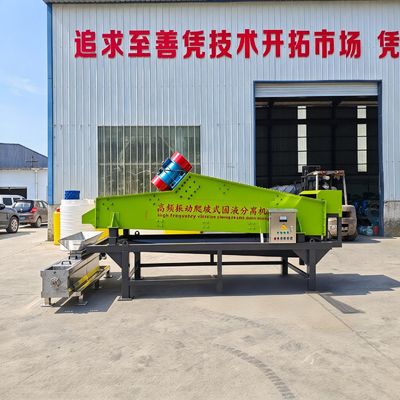

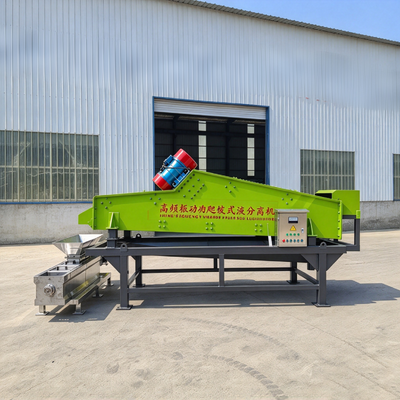

This high-frequency vibration inclined-plate solid-liquid separator is specially designed for reducing solid content in breeding wastewater. The system consists of screen box, vibrator, support system, and secondary screw extrusion dewatering unit. Dual vibrators run synchronously in reverse rotation, generating periodic exciting force that drives the screen box for high-frequency reciprocating motion to prevent mesh blocking.

• Anti-clogging High-Frequency Vibration Screening: Dual vibration motors produce high-frequency excitation force to prevent screen hole blocking and material sticking

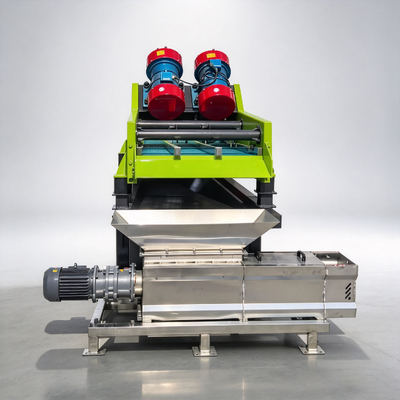

• Two-Stage Separation Process: Vibration pre-separation + secondary 304 stainless-steel screw extrusion dewatering for superior solid-liquid separation
• Adjustable Precision Filter Screen: Reinforced polyester screen, standard 150 mesh; optional 100-150 mesh for different filtration accuracy requirements
• Remote-Controllable Operation: Stainless-steel 5-loop electric cabinet supports local control and remote operation
• Heavy-Duty Reliable Structure: 16mm thick vibration plate with damping dampers for vibration reduction and stable continuous operation
• Cost-Saving Pretreatment: Effectively reduces solid load for subsequent equipment, decreasing flocculant consumption and operating costs

Application Scenarios: Large-scale livestock & poultry farms, biogas plants, breeding wastewater treatment stations, secondary fine-filtration pretreatment before screw press/multi-disc screw dehydrator.

Applicable Materials: Pig manure, cattle manure, poultry manure wastewater, biogas slurry and other organic wastewater.
