Introduction of Disc Pan Granulator

The disc pan granulator adopts an integral arc design, and the granulation rate can reach more than 93%. It is suitable for intermittent production, greatly reducing labor intensity and improving working efficiency.

It is widely used for pelletizing powdery, flaky or small block materials, such as coal powder, cement, clinker, compound fertilizer, chemical fertilizer and organic fertilizer.

Feature of Disc Pan Granulator

1. Integral arc design, granulation rate ≥93%, high finished pellet yield.
2. Equipped with non-power scraper, prevent material adhesion on disc surface.
3. Stable heavy-duty base, reduce vibration and ensure stable running.
4. Simple structure, easy operation and maintenance, suitable for batch intermittent production.
5. Wide material adaptability for organic fertilizer, compound fertilizer and mineral powder.
6. Adjustable disc angle to control pellet size flexibly.

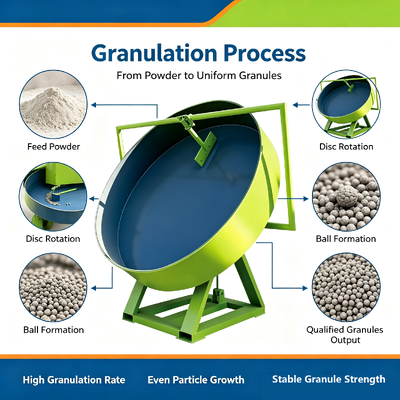

Working Process of Disc Pan Granulator

Powder raw materials are fed into the rotating disc. With continuous rotation and water spraying, the fine powder aggregates and gradually grows into round pellets. The non-power scraper keeps the disc clean to avoid material caking. Qualified spherical pellets roll out automatically, and unformed powder continues granulation inside the disc.

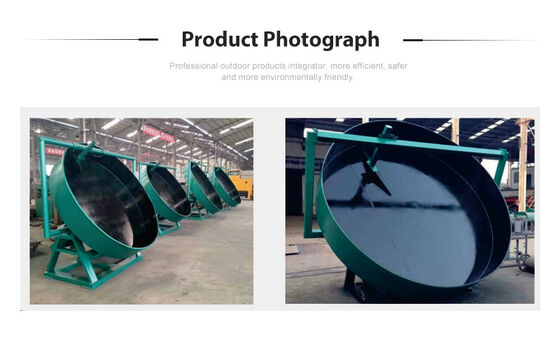

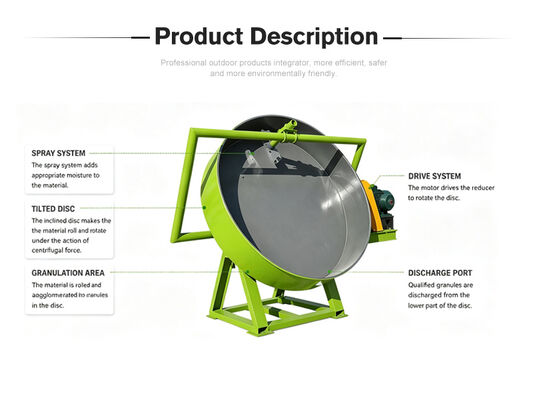

Product Details of Disc Pan Granulator

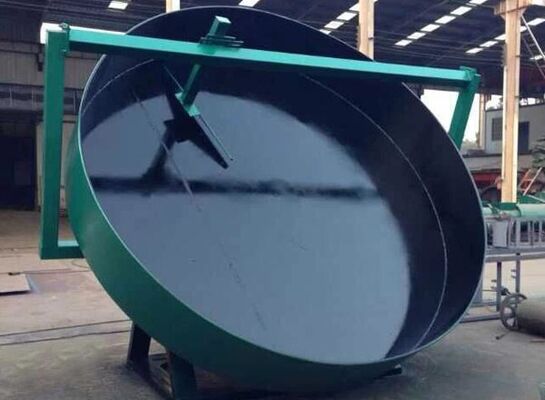

1. Granulation Disc: Integral arc structure, smooth inner surface for high forming rate.
2. Non-power Scraper: Clean residual materials without extra power consumption.
3. Stable Base: Thickened welded support frame for shock resistance and long service life.

Application & Raw Materials

Application Scenarios

• Organic fertilizer production plant
• Compound & chemical fertilizer factory
• Mineral powder pelletizing workshop
• New material granulation processing

Applicable Raw Materials

• Cow manure, chicken manure, mushroom substrate organic fertilizer
• Compound fertilizer, bacterial fertilizer
• Coal powder, cement, clinker and other mineral raw powder

  Item	YZL-25	YZL-28	YZL-30	YZL-32	YZL-45
  Disc Diameter (mm)	2500	2800	3000	3200	4500
  Disc Volume (m³)	2.5	3.7	4.2	4.8	6.1
  Power (kw)	7.5	11	11	11	37
  Capacity (t/h)	1-1.5	1-2.5	2-3	2-3.5	10
